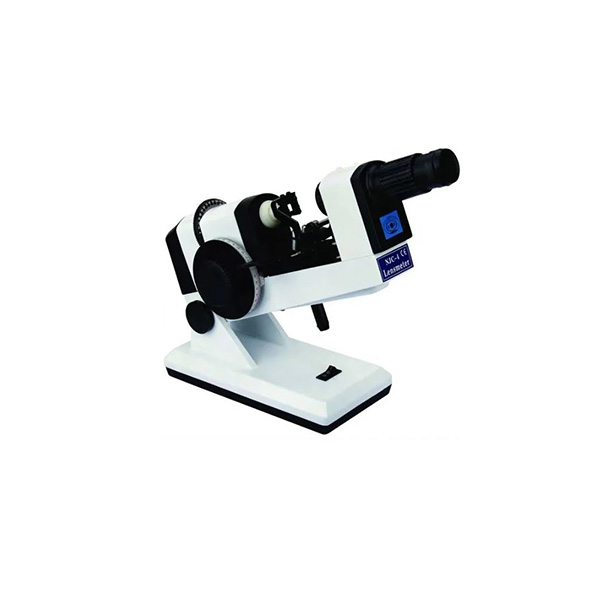

Eclipse Manual Lensmeter

Eclipse Manual Lensmeter is used to measure the diopters of spherical lens and cylinder lens, the axis of cylinder lens, the strength and the baseline direction of shuttle lens, it can also stamp the optical centre of lens, the axis of cylinder lens and the base direction of shuttle lens. This Eclipse Manual Lensmeter (Both Ac and Dc are permitted Two cells When Dc) has clear readings and graduations as well as high objective precision and reliabilities except that it can be operated easily and conveniently, AU the lenses and the made glasses can be measured by it, which, therefore, is a required and ideal measuring instrument for glasses manufactures, glasses stores and ophthalmological hospitals. Reading :Inner reading Ranges of  measurement:－25D～＋25D Minimum scale value: —5D~ 5D:0.125D ;-5D~-25D, 5D~ 25D: 0.25D Cylinder Axis Range :0～180°Minimum scale value 1° Prism degree:  Model A 0～5△ Minimum scale value 1△； 0～20△ Minimum scale value 1△ Prism basal angle:  0～180°Minimum scale value 1° Eyepiece adjustment:  －5D～＋5D Measurand lens Diameter: Φ16～Φ80mm Dimensions: 280mm(L)×150mm(W)×450mm(H) Weight:  Model A 4.9 kg; Lamp of illumination/Power220V / 110V 15W For your lensmeter consumables and more visit our online store, click here
