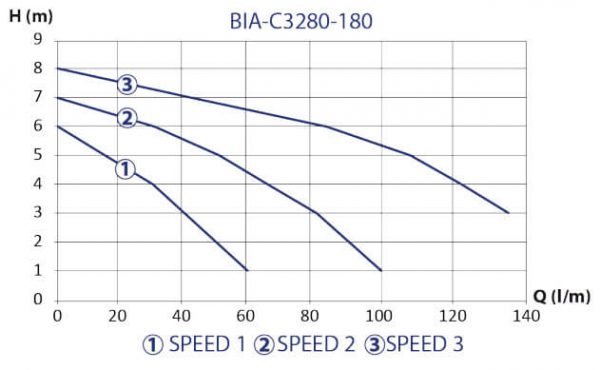

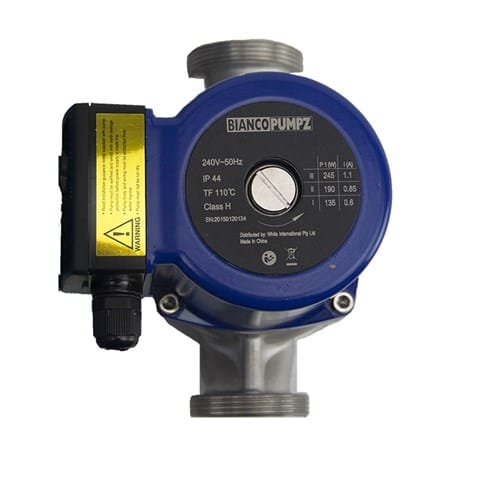

Bianco BIA-C3280-180 Hot Water Circulator This is a pump used for domestic hot water circulating. The Stainless steel housing makes it suitable for drinking water use and underfloor heating. It is maintenance free and is low in noise. Comes complete with 2″ Female x 1-1/4″ Female unions. The pump is characterized by: Circulation body materials suitable for potable water 3 speed operation Flows to 100-199 l/min Max Head 8m Technical Specifications Brand Bianco Pumpz Product Type Circulator Pump Suitable For Solar Hot Water Bar 0.8 Bar Flow Range Category b. 100 – 199 L/min Flow Rate (L/min) 130 L/min Max Head (m) 8 m Port Size Outlet 2″ BSPM outlet Warranty (months) 24 Months Volts 240 V Watts 245 W Brand: bianco Installation: Maximum ambient temperature: 40OC Maximum Operating Pressure: 10 bar Port spacing: 180mm Port size: 2” BSPM (1-1/4” BSPF if used with supplied unions) Electrical Data: 230V Mains Frequency: 50Hz Power consumption speeds: 1,2,3 Dimensions: 18 x 17 x 20 cm Motor: Continuous Motor type: Canned rotor Ingress Protection: IP44 Power cable: 1m Weight: 5KG
