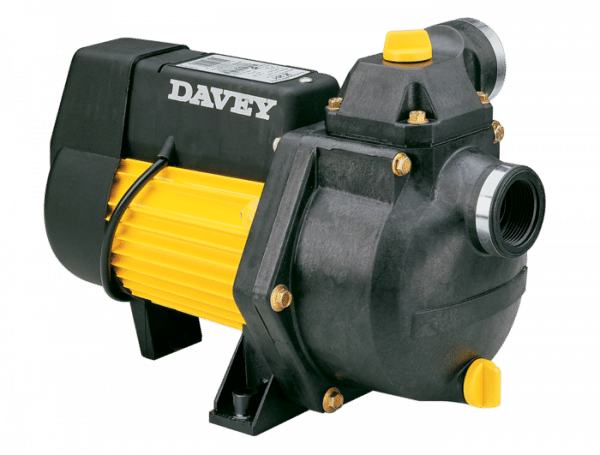

Davey Dynaprime X201 Self priming open faced impeller

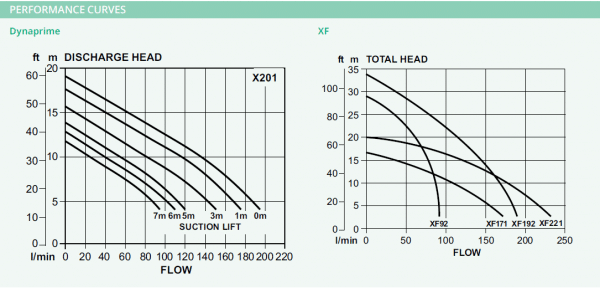

Davey Dynaprime X201 Self priming open faced impeller – 74101 SKU: X201 APPLICATION: Ideal for pumping clean or grey water with some small fibres or soft solids in such applications as water supply, water transfer, septic tank emptying and draining of water tanks. FEATURES & BENEFITS: Flows up to 195L/min and heads up to 18m PUMP 1 stage (single impeller)  Open vane impeller  Stainless steel impeller wear plate  Inbuilt check valve  Mechanical shaft seal  O-ring casing seal MOTOR  Davey manufactured  TEFC with IP55 enclosure  Class F insulation  Double contact C3-HTG sealed bearings  Inbuilt thermal overload protection  Plastic feet on motor shell BENEFITS • Manufactured from quality corrosion resistant materials  TEFC motor corrosion resistant and excludes dust and dirt  Motor and pump designed for frequent starts  Quick and easy installation  Low maintenance  Easy to service if required  Quick self priming INSTALLATION AND PRIMING  Installations with suction lift require a good quality foot valve to avoid loss of prime.  To prime, fill pump body and suction line through priming plug hole located above suction inlet and replace plug. Motor / power: 630W Max. flow: 195T/min Head: 19m Inlet: 1¼” / 25mm Outlet: 1¼” / 25mm Pressure: 180kPa Warranty on pump: 2 Years   Warranty Period: 24 Months For more information on product warranty or for further assistance, please contact us on 1300 229 606.
