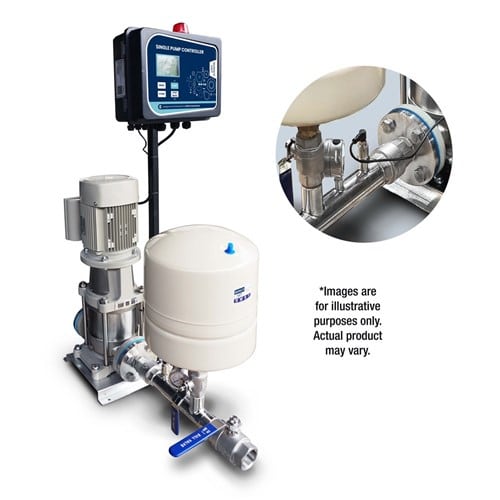

BIA-1VMS3/11M-MPT – VMS Manual Pressure Transducer Controlled Kit BIA-1VMS3/11M-TRAN (812322) BiANCO NXT Summit Series Pressure Transducer Controlled units are an all-in-one solution offering a professional quality range of vertical multistage pumps, engineered for exceptional efficiency, durability and dependable performance. Operation is controlled by a 4-20mA Pressure Transducer connected to a BiANCO NXT SPC (Single Pump Controller) allowing for precise digital pressure adjustment. Versatile and cost-effective, SUMMIT SERIES VMS solutions are designed for performance, reliability and ease of use. Pump Curve Kit Includes VMS Pump • Counter Flange (Available in DN25 to DN65) • Fiber Gaskets to suit Counter Flanges • Watermarked Spring Check Valve • Manifold (304 Stainless Steel) • 30 Bar Liquid Filled Pressure Gauge • Galvanised Single Pump Base • 25mm Ball Valve (304 Stainless Steel) • Braided Hose 20 Bar 1.5m 1” BSPF BPT-18 25 Bar Pressure Tank Included in Scope of Supply NXT SPC1-22 Control Panel BIA VMS 16bar 4-20mA pressure transducer Technical Specifications MAX FLOW 33L/min MAX HEAD 117M OPTIMUM OPERATING RANGE 1.2m3/hr @ 109.5m 31.6% eff 2.5m3/hr @ 94.3m 46.0% eff WORKING AIR TEMP 0°C – 40°C LIQUID TEMPERATURE -15°C – 120°C HIGHEST EFFICIANCY 51.5% MAXIMUM PUMP PRESSURE 33 bar NET WEIGHT (KG) 31.6kg RATED VOLTAGE/CURRENT Single phase 230V 10% – 6% RATED CURRENT 8 amps POWER (KW) 1.5kW 2 pole CAPACITOR 30uF MOTOR IP RATING IP55 MOTOR INSULATION Class F MOTOR EFFICIENCY STD I.E.3 MOTOR EFFICIENCY 84.2% COS ø 0.84 MECHANICAL SEAL AS-L-12 OUTLET DIN FLANGE DN25 DEFAULT CUT OUT 11 bar DEFAULT CUT IN 8 bar OVERPRESSURE ALARM 11.5 bar MAINS POWER SUPPLY: 1 x 200-240 Volt N, PE 50Hz 3 x 380-415 Volt N, PE 50Hz STARTING: Starting via Pressure Switch TESTING: System is functionally tested and individual pump certified testing available WARRANTY: 2 Years Dimensions Controller Details The BiANCO NXT-SPC (Single Pump Controller) provides control and protection for an individual single phase pump. The controller is simple to operate. The user not only enjoys superior control and protection of the pump but the user display provides user information about the running state of the system. By digitally monitoring the running current, the response time of the BiANCO NXT SPC is superior to traditional analogue overload methods. NXT-SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS Manual or Automatic operation NXT-SPC has an audible alarm and a flashing light to indicate an alarm state. It supports an external alarm unit Pump accumulated running time memory Pump start / stop delay time setting Last 5 error log Protection Functions • Over voltage • Under voltage • Dry Run (under current) • Overload (over current) • Pump stall • Open phase protection • Pump ‘Anti-seize’ function (96 hr default) Control Input • 4-20mA level or pressure transmitter Cutaway & Materials
