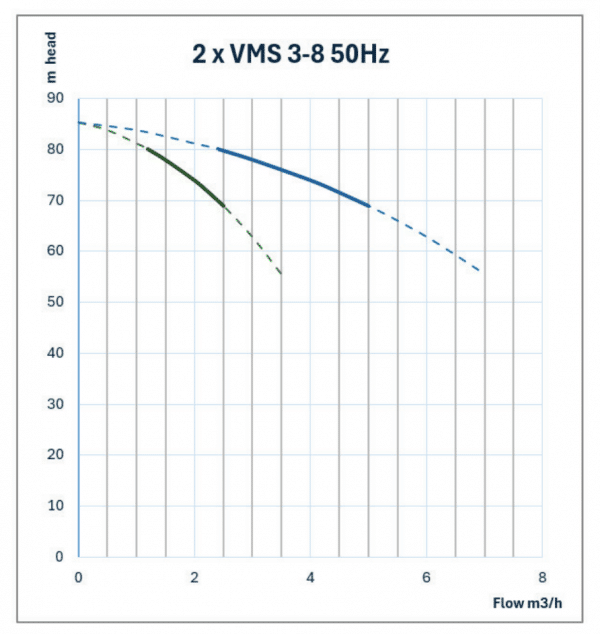

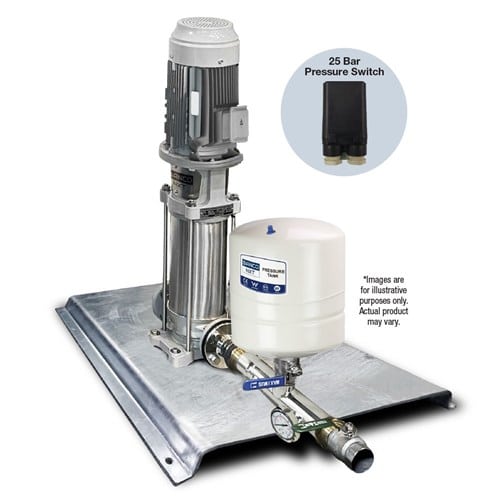

BIA-1VMS3/8M-MP – VMS Manual Pressure Switch Kit BIA-1VMS3/8M-MP (812321) The Bianco NXT Summit Series Pressure Switch Kits are an all-in-one solution which offers a professional grade range of vertical multistage pumps, engineered for exceptional efficiency, durability and dependable performance. These versatile and cost-effective solutions are designed to meet a variety of needs with no unnecessary extras. Pump Curve Kit Includes • VMS Pump • Pressure Switch – 25 Bar • Counter Flange (Available in DN25 to DN65) • Fiber Gaskets to suit counter flanges • Watermarked Spring Check Valve • Manifold (304 Stainless Steel) • 30 Bar Liquid Filled Pressure Gauge • Galvanised Single Platform • Ball Valve (304 Stainless Steel) • Braided Hose 20 Bar 1.5m 1” BSPF • Pressure Tank Included in Scope of Supply Technical Specifications RATED FLOW [M3/H] 2m3/hr MAX FLOW 3.5m3/hr MAX HEAD 85.3M OPTIMUM OPERATING RANGE 1.2m3/hr @ 79.9m 31.7% eff 2.5m3/hr @ 68.9m 46.2% eff WORKING AIR TEMP 0°C – 40°C LIQUID TEMPERATURE -15°C – 120°C HIGHEST EFFICIANCY 51.1% MAXIMUM PUMP PRESSURE 33 bar NET WEIGHT (KG) 25kg RATED VOLTAGE/CURRENT Single phase 230V 10% – 6% RATED CURRENT 3.99 amps POWER (KW) 1.1kW 2 pole CAPACITOR 25uF MOTOR IP RATING IP55 MOTOR INSULATION Class F MOTOR EFFICIENCY STD I.E.3 MOTOR EFFICIENCY 82.7% COS ø 0.83 MECHANICAL SEAL AS-L-12 OUTLET DIN FLANGE DN25 MAINS POWER SUPPLY: 1 x 200-240 Volt N, PE 50Hz 3 x 380-415 Volt N, PE 50Hz STARTING: Starting via Pressure Switch TESTING: System is functionally tested and individual pump certified testing available WARRANTY: 2 Years Dimensions Cutaway & Materials
