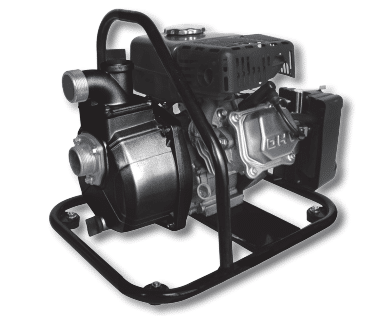

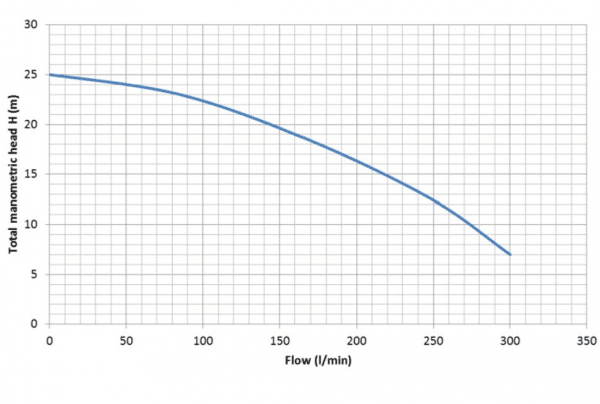

Bianco Vulcan 3.0Hp Single Stage Petrol Engine Pump The pump is a portable light weight self priming engine driven pump supplied ready to operate with hose fittings and suction strainer. Technical Specifications Brand Bianco Pumpz Product Type Engine Driven Pump Suitable For Water Transfer Fuel Petrol Hp 3.0 Max Flow (L/min) 300 Max Head (m) 80 Port Size Outlet 1 x 1-1/2″ 2 x 1″BSPM Suction Depth 8m Dimensions 464L x 378W x 400H Warranty (months) 24 Months Liquid: Liquid Type: Clean Water Clean water temperature range: 2 – 35o C Materials: Pump Body: Aluminium Impeller: Aluminium Mechanical Seal: Carbon/Ceramic/Nitrile O rings: Nitrile Installation: Maximum ambient temperature: 40 C Self Priming Time at 5m: <120 seconds Weight: 15.5kg Packaged Weight (KG): 17.50 APPLICATIONS • Water transfer • Tank filling • De-watering • Dust Suppression FEATURES Custom Built Frame Spark Arrester Full Serviceability Single cylinder, 4 stroke, forced air cooled, OHV engine Heads to 25 metres Flows to 300 l/min Suction to 8m 1 x 1.5” 2 x 1” BSP male discharge ports 1 x 1.5” BSP male suction port Rubber mounting feet Carry Frame Full Serviceability PERFORMANCE CURVE Roll Frame Custom engineered easy access roll frame that provides ongoing protection of the pump and engine whilst being fully accessible for ease of servicing. Rubber Mounting Feet Integrated rubber mounting feet pre fitted to the frame reducing vibration and movement during operation. Discharge Port 1 x 1½” BSP male discharge port Suction Port 1 x 1½” BSP male suction port
