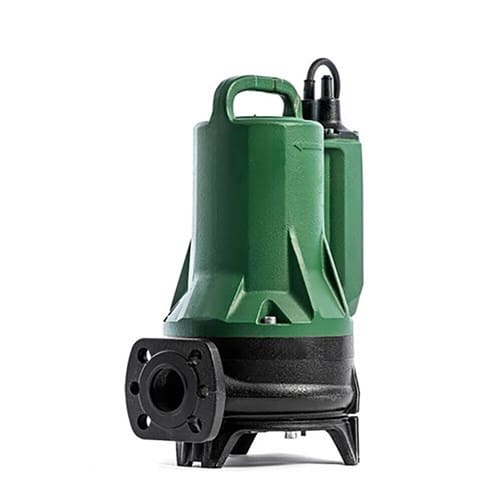

DAB-GRINDERFX15.07M Grinder Submersible Pump – 810202 Grinder FX is a submersible pump with shredder designed for the drainage of waste water coming from drains in civil and commercial environments. The pump is certified according to the wastewater standard EN 12050-1. Pump suitable for fixed installations with a coupling device or mobile if placed on a base directly on the bottom of the tank. Thanks to the high-strength grinder, the pump is suitable for installations with small-diameter pipes or those requiring high pressures. The pump is designed for quick maintenance thanks to a constructive solution that provides easy access to the main components of the pump. Automatic versions with power up to 1,5 kW. ATEX version available for use in potentially explosive environments. (ATEX certifications: II2G Ex db k IIB T4 or IEC EX: Ex db IIB T4 Gb). Technical Specifications Brand DAB Pumps Bar 1.7 Flow Range Category c. 200 – 299 L/min Flow Rate (L/min) 240 L/min Kilo Watts 0.8 kW Head Range Category a. 0 – 39 m Max Head (m) 16.9 m Port Size Outlet RP1-1/2″ – DN32PN10/6, DN40PN6 Volts 240 V Features High resistance stainless steel grinder system Suitable for the transfer of sewage water at high pressure or when narrow piping is needed to keep down system installation costs Single-phase versions with starter and capacitor in a separate panel Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid. Motor shaft in anticorrosion stainless steel AISI 304 External cataphoresis and two component coating for corrosion resistance Resin sealed cable gland Compliant with waste water standards EN 12050 Pump body and impeller in cast iron, shredder in AISI 630 Threaded and flanged outlet Warranty 2 Year Pump Parts and Labour Warranty
