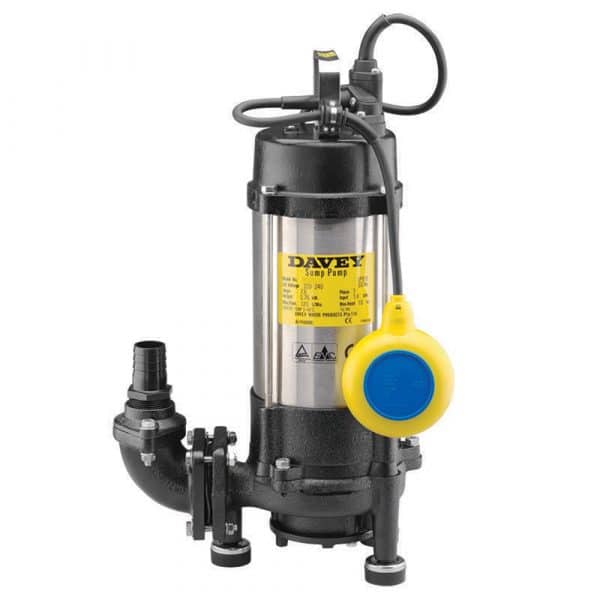

Davey D150GA Submersible Grinder Pump 240V

Davey D150GA Submersible Single Phase Grinder Pump 240V SKU: D150GA WHY CHOOSE THE Davey Submersible Grinder Pumps? PUMP Heavy duty shredding and grinding ring at inlet. Centrifugal design, open impeller. Double Mechanical shaft seal in oil bath. Hard faced Silicon Carbide/Ceramic seal on pump side. Sand slinger lip seal for added protection. O-ring casing sealing. Corrosive resistant stainless steel and quality heavy duty powder coated cast iron pump parts. Weight: 31Kg MOTOR 2 pole, 2900rpm 50Hz 240V single phase or 415V three phase. Submersible with IPx8 enclosure. Class F insulation. 10 metre HO7RN-F oil resistant power lead and seal sensor lead fitted with bared wire lead ends for easy connection to power supply terminations. Seal sensor leads fitted for easy connection to a protection relay to enable timely repairs prior to motor damage. Not fitted to D75G/GA or DT08G models. Protected against both high operating temperatures and high current by a built in automatically resetting thermal overload. Dimensions (mm): 300L x 340W x 530H APPLICATIONS • Grey and black water pumping • Sump emptying • Septic effluent and sewage disposal • Pumping of waste water with soft solids in suspension   BENEFITS •Able to pump soft organic solids, sanitary products, thin rubber products and even some textiles in suspension, by shredding to a slurry •Open impeller prevents blockage of the pump by small solids in the slurry • High heads and small solids allow connection to small discharge pipe systems, especially suited to pumping waste water to pressure sewer mains •Silent operation •Quick and easy installation • Hose tail supplied with every pump • Low maintenance • Fully repairable • Mounting feet with rubber cushions fitted for a firm and stable positioning during installation and operation for D75G/ GA, DT08G, D120G/A, D150G/A, DT12G & DT15G. •Adaptable to slide rails OPERATING LIMITS Capacities to: 175 lpm Maximum total head: 24m Maximum submergence: 20m Maximum pumped water temperature: 40ºC ELECTRICAL DATA Electrical lead: 10m Phase: Single Volts: 220-240 kW (nameplate): 1.50 Amps – FL: 13.00 Insulation: F class SUITABLE FLUIDS Sewage or “Grey Water” of neutral pH containing up to 20% soft organic solids (some wear should be expected while pumping hard solids in suspension). INSTALLATION & PRIMING Use a rope to position and retrieve the pump. Do not lower or retrieve the pump using the power lead as this may damage the cable entry seals, causing water leaks and unsafe operation. Do not use this product for recirculating or filtering swimming pools, spas, etc. While these pumps are built to high safety standards, they are not approved for installations where people will be in the water while they are operating. Do not pump abrasive materials. Sand and grit in the water being pumped will accelerate wear, causing shortened pump life. Make room for the float switch to operate. Automatic models have a float switch to turn them on when the water level rises and turn them off again when it has been pumped down to the safe operating level of the pump. If the float switch is not free to rise and fall, correct pump operation may not be possible. Don’t run your pump dry. Non-automatic models must be switched off manually or by way of an external float/level switch when the water level is reduced to the top of the pump housing.
