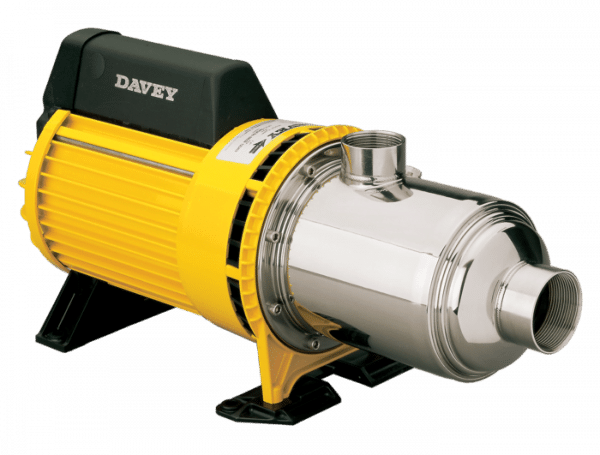

Davey HM160-15/3 Home Transfer System WHY CHOOSE THE DAVEY HM SERIES HORIZONTAL MULTISTAGE PUMP? Horizontal multistage centrifugal pump with all hydraulic parts in stainless steel: • Suitable for high water temperatures • Corrosion and wear resistant Axial suction and vertical discharge: • Compact design • Easy to install Stainless steel impellers with high efficiency impeller profile and thick self-centring impeller neck rings for: • High efficiency • Reduced power consumption • Low noise output Air purging valve and stage porting: • Easier priming • Less susceptible to air leaks • Improved dependability Impellers mounted directly on extended shaft: • Maximise performance per stage • High efficiency • Long motor and pump life • Increased wear resistance Pump casing assembly attached to motor bracket at 8 points with o-ring seal: • Complete stainless casing • Better sealing • Longer service life Davey built, totally enclosed fan cooled (TEFC) electric motor: • Single-phase motors have built in thermal overload protection with automatic reset and 1.8m long power lead and Australian 3 pin plug • Sealed and greased for life motor bearings • Over sized drive bearing • Longer life • Easy service • Economical & quiet running Automatic control options: Davey Torrium standard pressure switch and gauge multiple pump system • Versatile system design • Simple automatic control • Suitable for many applications Motor / power: 580W Max. flow: 80T/min Head: 46m Inlet: 1.25″F / 32mm Outlet: 1″M / 25mm Pressure: 460kPa Body: 304 Stainless Steel Impeller:304 Stainless Steel Stages: 304 Stainless Steel Pump Shaft: 316L Stainless Steel Stage Centring device: 304 Stainless Steel Mechanical Seal : Carbon Warranty on pump: 2 Years Applications: • Water supply, boosting & transfer • Irrigation & turf watering • Wash down • Emptying/filling reservoirs or tanks • Water treatment (demineralisation, filtering etc) • Commercial washing equipment Features: Horizontal multistage centrifugal pump with all hydraulic parts in stainless steel: Suitable for high water temperatures Corrosion & wear resistant Axial suction & vertical discharge: Compact design Easy to install Stainless steel impellers with high efficiency impeller profile & thick self-centring impeller neck rings for: High efficiency Reduced power consumption Low noise output Impellers mounted directly on extended motor shaft: Maximise performance per stage High efficiency Long motor & pump life Increased wear resistance Pump casing assembly attached to motor bracket at 8 points with oring seal: Complete stainless casing Better sealing Longer service life Davey built, totally enclosed fan cooled (TEFC) electric motor: Single-phase motors have built in thermal overload protection with automatic reset and 1.8m long power lead and Australian 3 pin plug Sealed and greased for life motor bearings Over sized drive bearing Longer life Easy service Economical & quiet running
