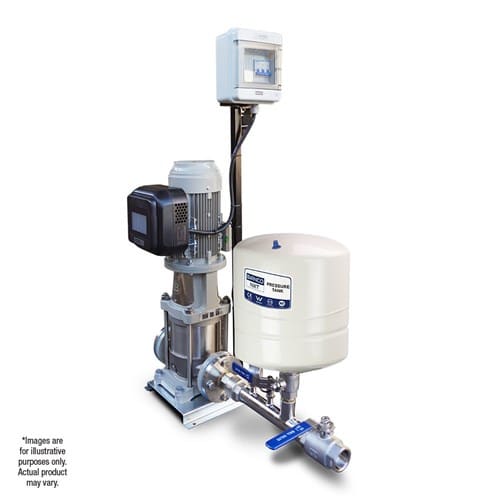

BIA-1VMS10/12T-DRIVE – VMS Electronic Drive Kit BIA-1VMS10/12T-DRIVE (812407) (18L 25Bar) Incudes BIA-NXT-DRIVE3-40 Controller The Bianco NXT Summit Series Drive Controller Kits are an all in-one solution designed to achieve advanced control, enhanced protection and optimal energy efficiency with the Bianco NXT range of Variable Frequency Drives. Featuring the latest touch screen technology and an intuitive user friendly menu, these kits provide easy access to all the information you need. SUMMIT SERIES VMS solutions are designed for performance, reliability and ease of use. *Single pump build* Product Details The NXT DRIVE Series are a range of pump-specific Variable Frequency Drives designed for the Australasian market with both the end-user and the technician in mind. Featuring a full colour touch screen interface for clear concise system information, fault codes and protection notices with a handy setup wizard so you’re always in control. NXT DRIVE is both simple to set up and to use. Perfect for achieving instant pressure management of a single pump with advanced control, enhanced protection and optimal energy efficiency Pump Curve Kit Includes VMS Pump NXT Drive (Variable Frequency Drive) 4-20mA 16 bar Pressure Transducer Stainless Steel Counter Flanges Gasket to suit Counter Flanges Galvanised Single Pump Base Watermarked Spring Check Valve Manifold (304 Stainless Steel) 30 Bar Liquid Filled Pressure Gauge Outlet side SS Isolation Valve BPT18 25 bar rated Pressure Tank with304 SS 25mm isolating valve Features • Control and protect pumps up to 4.0kW (9.0 amps) • Variable frequency control to achieve constant pressure control • Minimise wasted energy and reduce the need for large pressure tanks • ‘Soft-start’ with low motor start current • Flow, pressure and current protections • RS485 comms • 25 plain language fault messages • Provides protection from; dry run, high and low voltage, input and output short circuits, high and low water pressure, input and output phase failure, high temperature and sensor faults • 24V, 10V and 5V supply circuits • Digital and analogue (voltage or current) inputs • Relay and analogue outputs • Multi-functional terminals Technical Specifications Brand Bianco NXT Product Type Vertical Multi Stage – Three Phase Amps 7.56 Flow Range Category a. 100 – 199 L/min Flow Rate (L/min) 133 Hp 3 Kilo Watts 4.4 Max Flow (L/min) 67 Max Head (m) 130 Port Size Outlet DN40 Volts 415 Watts 4000 Max Pressure (bar) 33 Min Temp (degrees celsius) -15 Max Temp (degrees celsius) 120 Water Resistant IP55 Pack Weight (KG): 60.5 Cutaway & Materials
